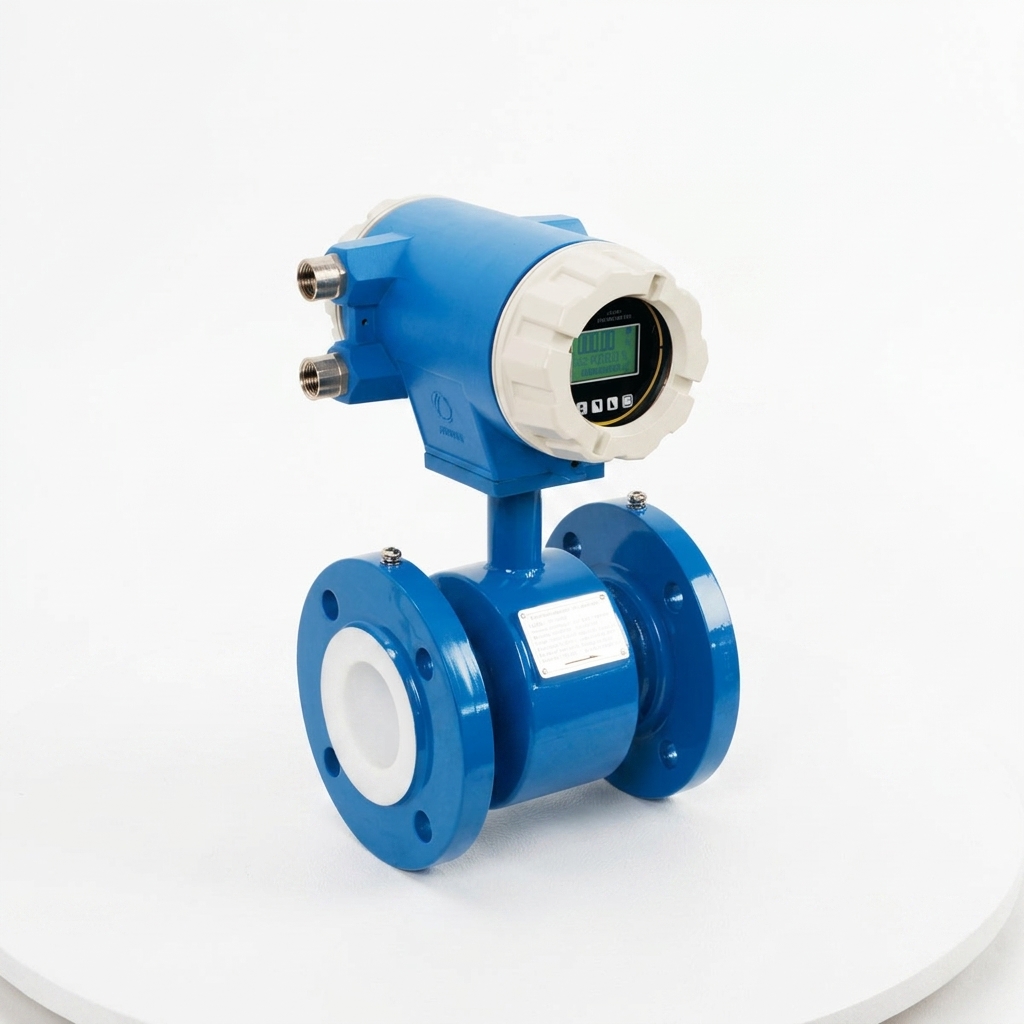

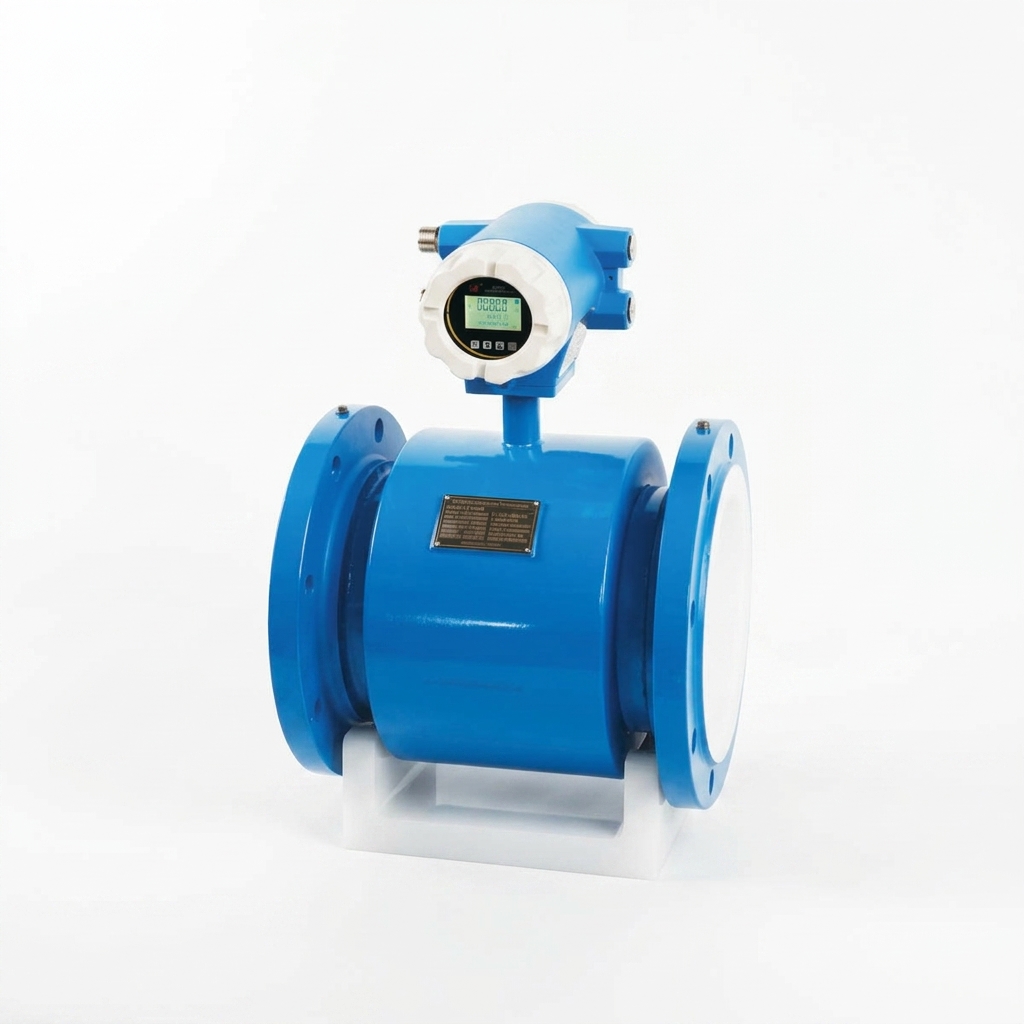

Ultra-High Pressure Electromagnetic Flowmeter (25–42 MPa)
Overview
This electromagnetic flowmeter is specifically developed for high-pressure liquid measurement in oilfield applications, including polymer mother liquor, chemical injection, and pulsating flow from plunger pumps. It delivers stable, accurate measurement with a long service life, making it ideal for petrochemical, water injection, and chemical dosing systems.
Key Features
Accurate low-flow measurement – starts measuring reliably from 0.01 m³/h
Suitable for harsh media – handles liquids with particles, slurries, mud, and chemical agents
High-pressure capability – pressure ratings from 25 MPa to 42 MPa
Strong anti-interference – resistant to static and lightning surge voltages up to 1500 V
Multiple material options – electrodes available in 316L SS, Hastelloy C, Titanium, and more
Flexible installation – available in compact or remote versions
Technical Specifications
| Parameter | Details |
|---|---|
| Nominal Diameter | DN10 – DN150 |
| Pressure Rating | 25 MPa – 42 MPa |
| Accuracy | 0.5% or 1.0% |
| Electrode Materials | 316L SS, Hastelloy C, Titanium, etc. |
| Lining Materials | Neoprene / Polyurethane / F46 (depending on model) |
| Medium Conductivity | > 15 μS/cm |
| Medium Temperature | -10°C to +80°C / -20°C to +130°C |
| Enclosure Rating | IP65 (integral) / IP68 (remote sensor) |
| Explosion-proof | Ex mb dib II BT4 / Ex d mb ib II CT4 Gb |
| Output | 4-20 mA (standard), RS485, Pulse (optional) |
| Power Supply | AC220V ±10% or DC24V ±5% |
| Ambient Temperature | -10°C to +50°C (protective cover recommended for outdoor use) |
Applications
Oilfield polymer injection measurement
Chemical dosing systems
Slurry and mud flow monitoring
High-pressure water injection
Corrosive liquid handling
