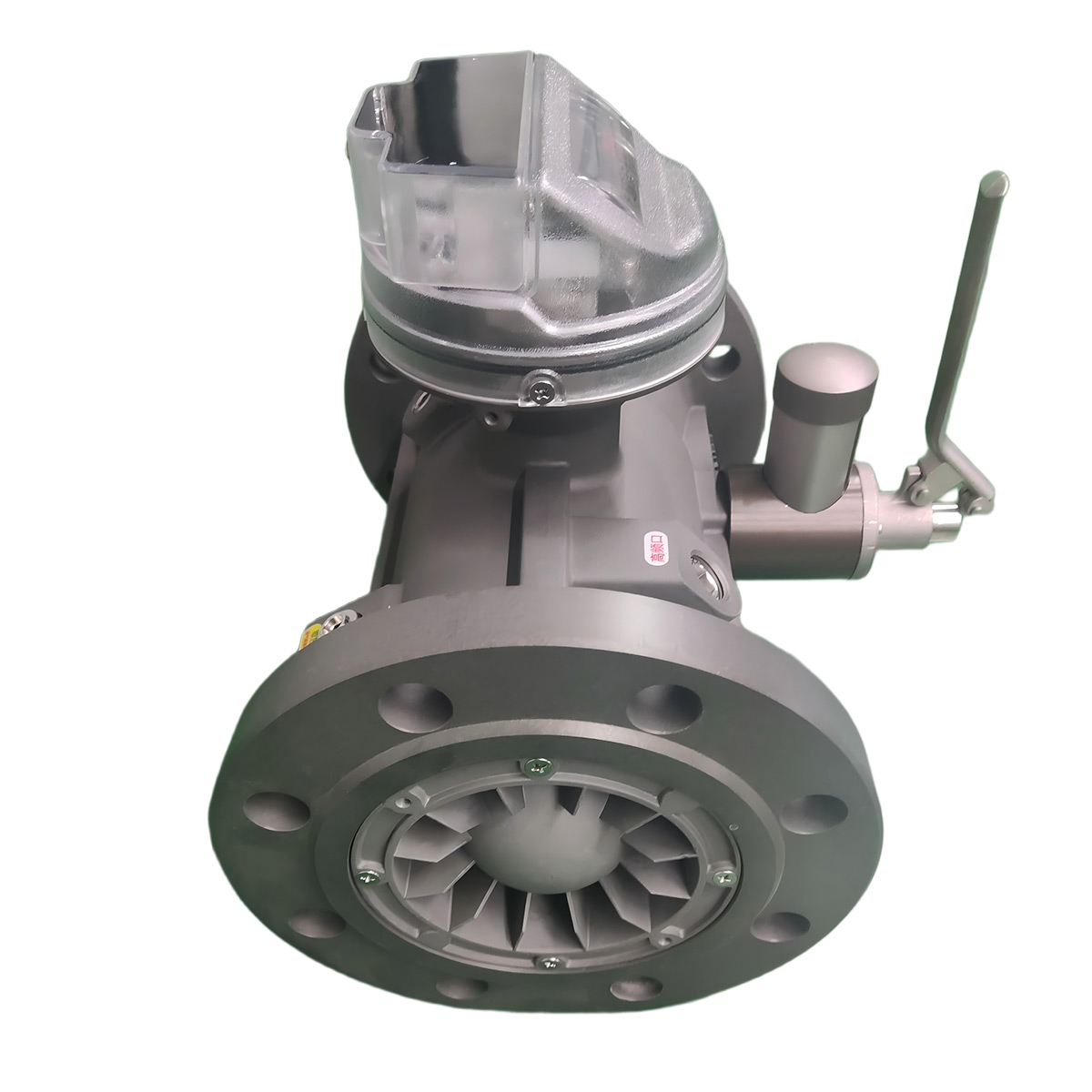

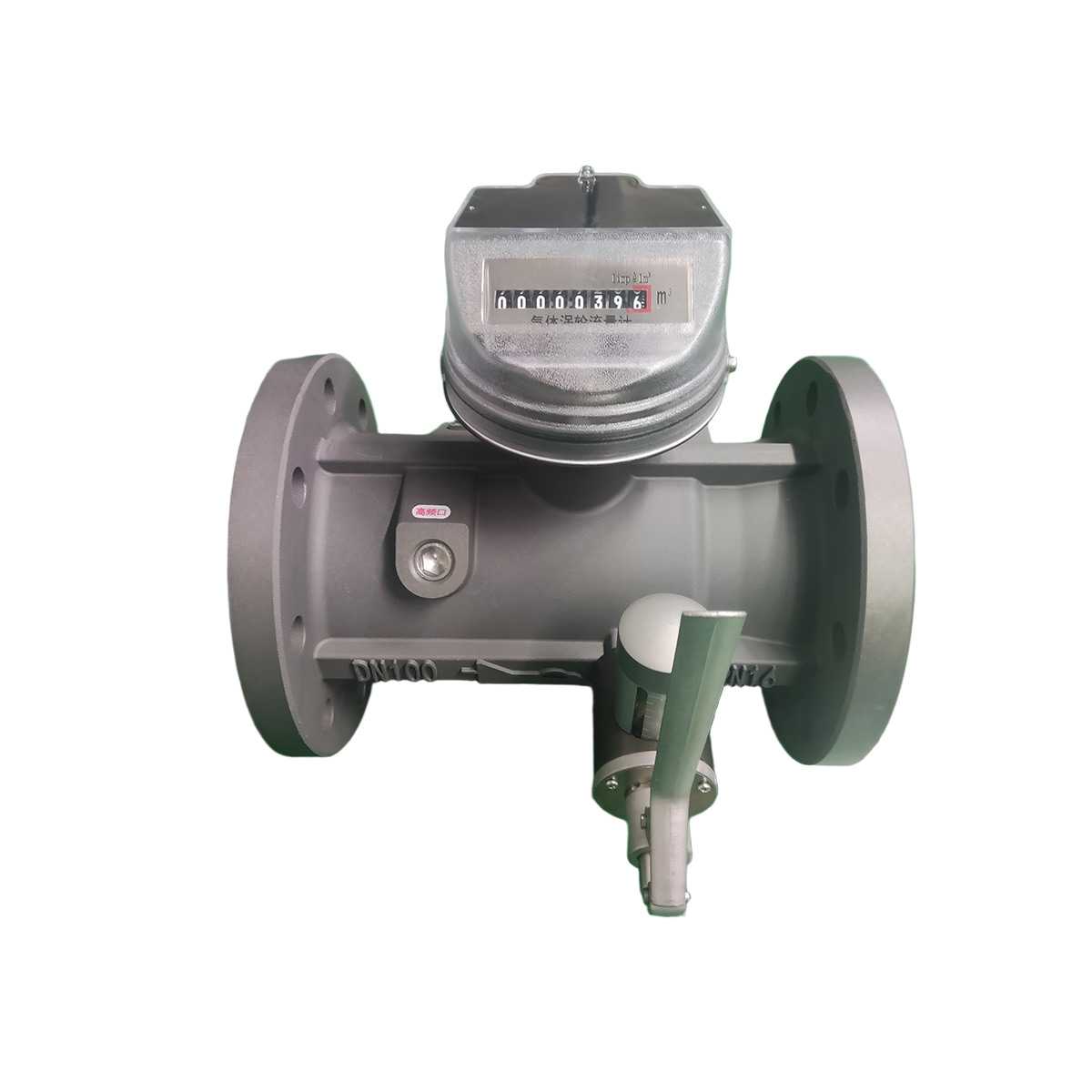

Hade HTZ Series Gas Turbine Flow Meter | DN50 to DN400 | 4-20mA
· High Measurement Accuracy
Accuracy class up to ±1.0% (or ±0.5% for high-precision models), with excellent linearity and repeatability for precise gas volume measurement.
· Low Pressure Loss
Optimized impeller design results in very low pressure drop, reducing energy consumption and minimizing impact on pipeline pressure.
· Intelligent Digital Display & Multiple Outputs
Equipped with LCD display showing instantaneous and total flow; supports 4-20mA, pulse, RS485, and GPRS/IoT remote transmission.
· Explosion-Proof Safety
Available with Ex d II BT4 Gb or Ex ia II CT4 explosion-proof certifications, safe for use in hazardous Zone 1 and Zone 2 gas environments.
· Wide Flow Range
Turndown ratio up to 1:10 ~ 1:20, capable of accurately measuring both small and large flow rates in a single meter.
Accuracy class
The accuracy levels are 1.0 and 1.5,
1.0 grade:0.2Qmax~Qmax:±1.0%;
Qmin~0.2Qmax:±2.0%
1.5 grade:0.2Qmax~Qmax:±1.5%;
Qmin~0.2Qmax:±3.0%
Useenvironment
Ambient temperature:-25°C~+60°C
Relative humidity:5%~95%
Medium temperature:-30°C~+80°C
Atmospheric pressure:70kPa~106kPa
Nominal diameter DN/mm (inches)
| Model and specification | Flow rangem3/h | Maximum Pressure LosskPa | Minimum Operating Flow m3/h |
Nominal Pressure MPa
| Valve Opening Times |
Valve Closing Time s | Remarks |
25（1"） | HTZ-25A | 2～20 | 1.1 | 1.0 | 1.6 | ＜160 | ＜160 |
Body Material： ≤1.6MPaDie-cast aluminum alloy ＞1.6MPaCarbon steel or stainless steel
|
HTZ-25B | 4～40 | 2.0 | 1.3 | |||||
HTZ-25C | 5～70 | 2.0 | 1.6 | |||||
50（2"） | HTZ/HTM/HTME-50A | 6～65 | 0.51 | 0.9 | 1.6 2.5 4.0 6.3 | ＜210 | ＜210 | |
HTZ/HTM/HTME-50B | 8～100 | 0.86 | 1.2 | |||||
HTZ/HTM/HTME-50C | 10～160 | 2.13 | 1.2 | |||||
80（3"） | HTZ/HTM/HTME-80A | 8～160 | 0.9 | 1.3 | ＜360 | ＜360 | ||
HTZ/HTM/HTME-80B | 13～250 | 1.46 | 1.4 | |||||
HTZ/HTM/HTME-80C | 20～400 | 2.45 | 1.4 | |||||
100（4"） | HTZ/HTM/HTME-100A | 13～250 | 0.50 | 2.0 | ＜500 | ＜500 | ||
HTZ/HTM/HTME-100B | 20～400 | 1.01 | 2.5 | |||||
HTZ/HTM/HTME-100C | 32～650 | 2.45 | 3.5 | |||||
150（6″） | HTZ/HTM/HTME-150A | 32～650 | 0.50 | 6.0 | ＜600 | ＜600 | ||
HTZ/HTM/HTME-150B | 50～1000 | 0.95 | 9.0 | |||||
HTZ/HTM/HTME-150C | 80～1600 | 2.10 | 9.0 | |||||
200（8″） | HTZ/HTM/HTME-200A | 50～1000 | 0.30 | 9.0 | ＜600 | ＜600 | ||
HTZ/HTM/HTME-200B | 80～1600 | 0.56 | 9.0 | |||||
HTZ/HTM/HTME-200C | 130～2500 | 1.40 | 16 | |||||
250（10″） | HTZ/HTM/HTME-250A | 80～1600 | 0.60 | 15 | Body Material： Carbon steel or stainless steel | |||
HTZ/HTM/HTME-250B | 130～2500 | 1.23 | 15 | |||||
HTZ/HTM/HTME-250C | 200～4000 | 2.45 | 23 |
Nominal diameter | HTM type nominal pressure:1.6/2.5 /4.0 MPa | ||||
DN | A | B | H | K | n-d |
50 | 150 | 198/198/198 | 232/232/232 | 125 | 4-Ф18 |
80 | 240 | 233/233/233 | 267/267/267 | 160 | 8-Ф18 |
100 | 300 | 248/263/263 | 282/277/277 | 180/190/190 | 8-Ф18/22/22 |
150 | 450 | 318/328/328 | 342/352/352 | 240/250/250 | 8-Ф22/26/26 |
200 | 600 | 365/385/385 | 402/412/420 | 295/310/320 | 12-Ф22/26/30 |
250 | 375 | 440/445/445 | 447/457/470 | 355/370/385 | 12-Ф26/30/33 |
300 | 450 | 475/500/500 | 597/512/527 | 410/430/450 | 12-Ф26/16-Ф30/16-Ф33 |
