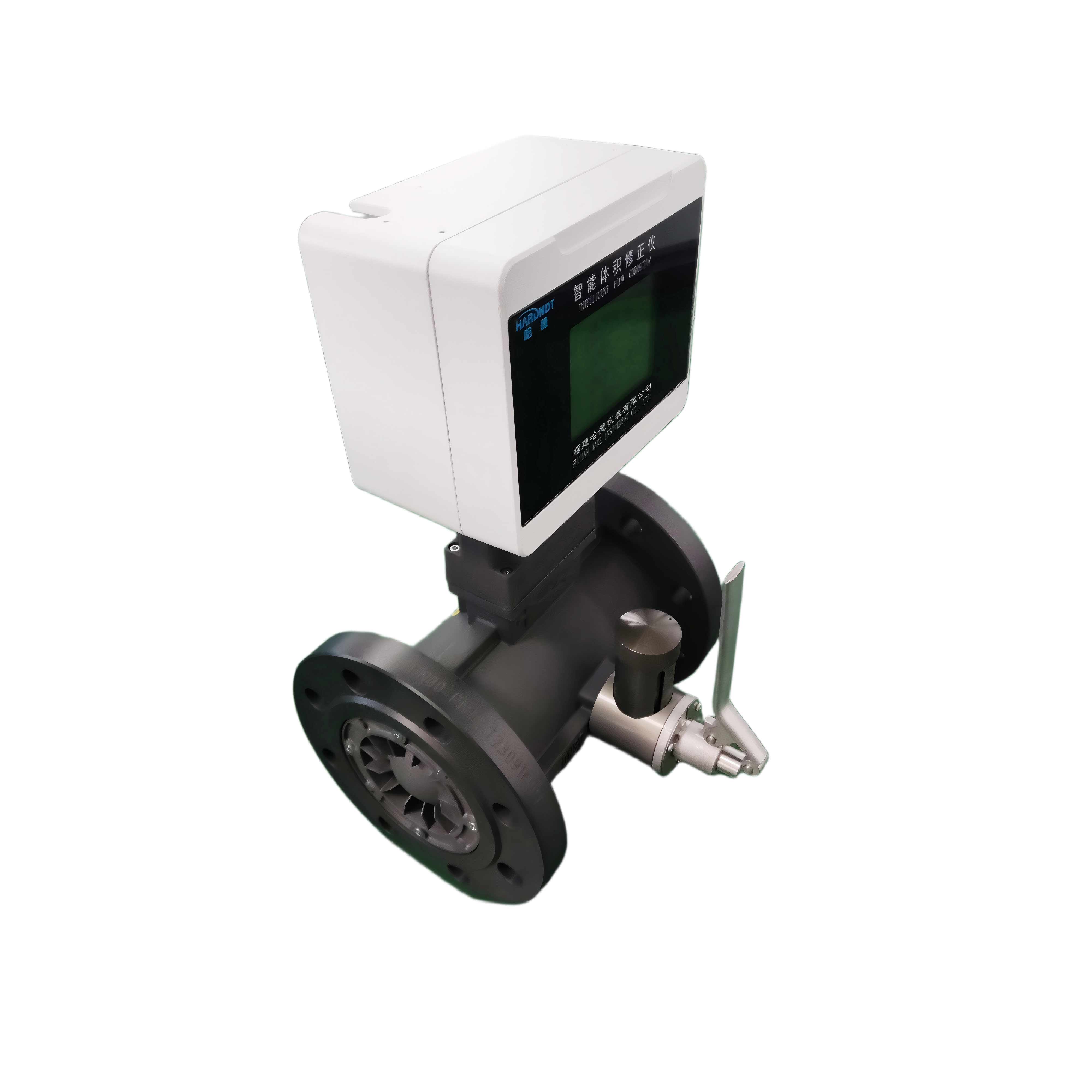

HTZ Series Electronic Display Gas Turbine Flowmeter – Real-Time Data & High Accuracy

· High Measurement Accuracy

Accuracy class up to ±1.0% (or ±0.5% for high-precision models), with excellent linearity and repeatability for precise gas volume measurement.

· Low Pressure Loss

Optimized impeller design results in very low pressure drop, reducing energy consumption and minimizing impact on pipeline pressure.

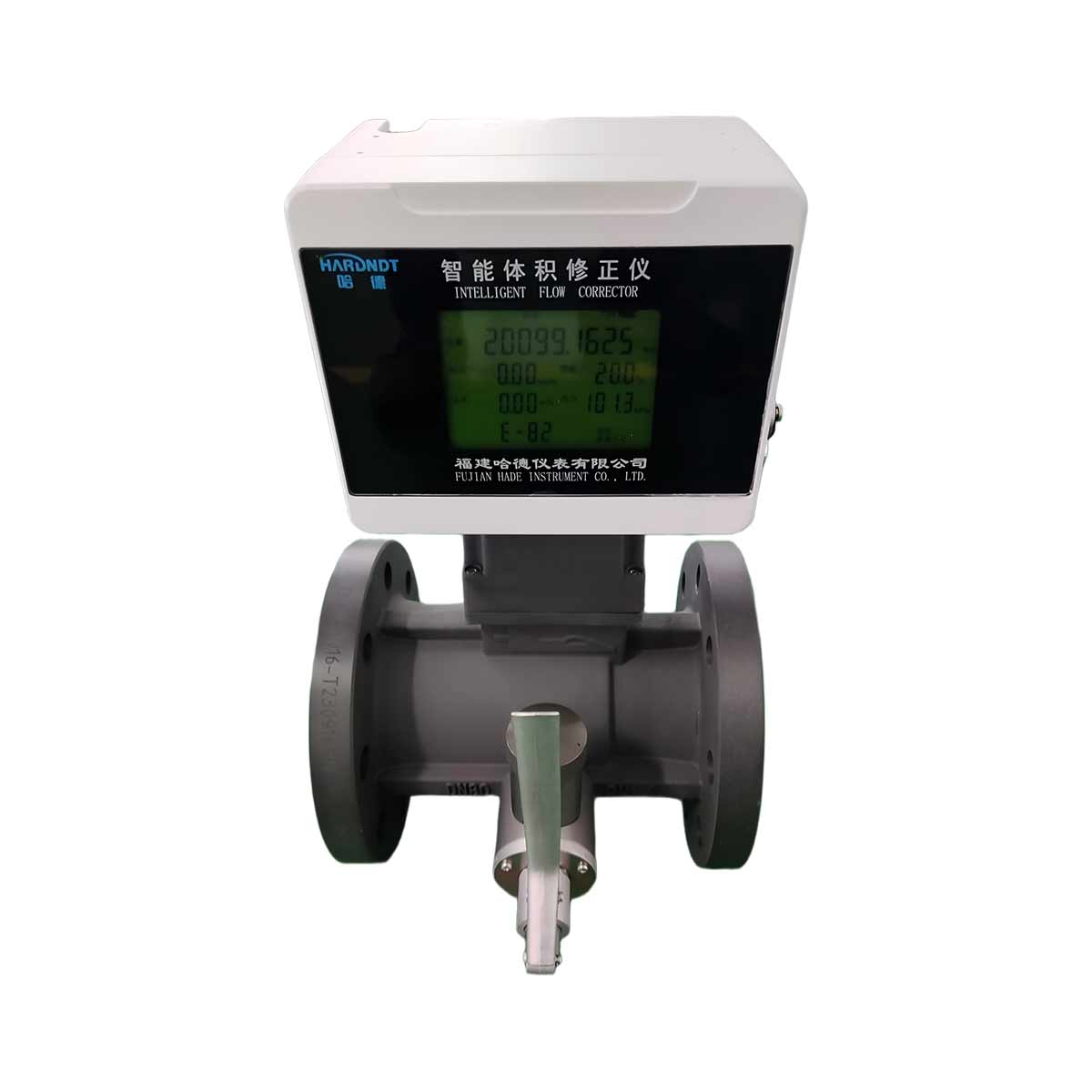

· Intelligent Digital Display & Multiple Outputs

Equipped with LCD display showing instantaneous and total flow; supports 4-20mA, pulse, RS485, and GPRS/IoT remote transmission.

· Explosion-Proof Safety

Available with Ex d II BT4 Gb or Ex ia II CT4 explosion-proof certifications, safe for use in hazardous Zone 1 and Zone 2 gas environments.

· Wide Flow Range

Turndown ratio up to 1:10 ~ 1:20, capable of accurately measuring both small and large flow rates in a single meter.

Accuracy class

The accuracy levels are 1.0 and 1.5,

1.0 grade:0.2Qmax~Qmax:±1.0%;

Qmin~0.2Qmax:±2.0%

1.5 grade:0.2Qmax~Qmax:±1.5%;

Qmin~0.2Qmax:±3.0%

Useenvironment

Ambient temperature:-25°C~+60°C

Relative humidity:5%~95%

Medium temperature:-30°C~+80°C

Atmospheric pressure:70kPa~106kPa

Nominal diameter DN/mm (inches)	Model and specification	Flow rangem3/h	Maximum Pressure LosskPa	Minimum Operating Flow m3/h	Nominal Pressure MPa	Valve Opening Times	Valve Closing Time s	Remarks
25（1"）	HTZ-25A	2～20	1.1	1.0	1.6	＜160	＜160	Body Material： ≤1.6MPaDie-cast aluminum alloy ＞1.6MPaCarbon steel or stainless steel
	HTZ-25B	4～40	2.0	1.3
	HTZ-25C	5～70	2.0	1.6
50（2"）	HTZ/HTM/HTME-50A	6～65	0.51	0.9	1.6 2.5 4.0 6.3	＜210	＜210
	HTZ/HTM/HTME-50B	8～100	0.86	1.2
	HTZ/HTM/HTME-50C	10～160	2.13	1.2
80（3"）	HTZ/HTM/HTME-80A	8～160	0.9	1.3		＜360	＜360
	HTZ/HTM/HTME-80B	13～250	1.46	1.4
	HTZ/HTM/HTME-80C	20～400	2.45	1.4
100（4"）	HTZ/HTM/HTME-100A	13～250	0.50	2.0		＜500	＜500
	HTZ/HTM/HTME-100B	20～400	1.01	2.5
	HTZ/HTM/HTME-100C	32～650	2.45	3.5
150（6″）	HTZ/HTM/HTME-150A	32～650	0.50	6.0		＜600	＜600
	HTZ/HTM/HTME-150B	50～1000	0.95	9.0
	HTZ/HTM/HTME-150C	80～1600	2.10	9.0
200（8″）	HTZ/HTM/HTME-200A	50～1000	0.30	9.0		＜600	＜600
	HTZ/HTM/HTME-200B	80～1600	0.56	9.0
	HTZ/HTM/HTME-200C	130～2500	1.40	16
250（10″）	HTZ/HTM/HTME-250A	80～1600	0.60	15				Body Material： Carbon steel or stainless steel
	HTZ/HTM/HTME-250B	130～2500	1.23	15
	HTZ/HTM/HTME-250C	200～4000	2.45	23

Nominal diameter	HTZ type nominal pressure:1.6/2.5/4.0MPa
DN	A	B	H	K	n-d
50	150	194	446	125	4-Ф18
80	240	230	491	160	8-Ф18
100	300	249/264/264	510/505/505	180/190/190	8-Ф18/22/22
150	450	312/322/322	574/584/584	240/250/250	8-Ф22/26/26
200	600	369/389/389	625/635/643	295/310/320	12-Ф22/26/30
250	375	430/435/435	690/700/713	355/370/385	12-Ф26/30/33
300	450	460/475/475	750/765/780	410/430/450	12-Ф26/16-Ф30/16-Ф33
