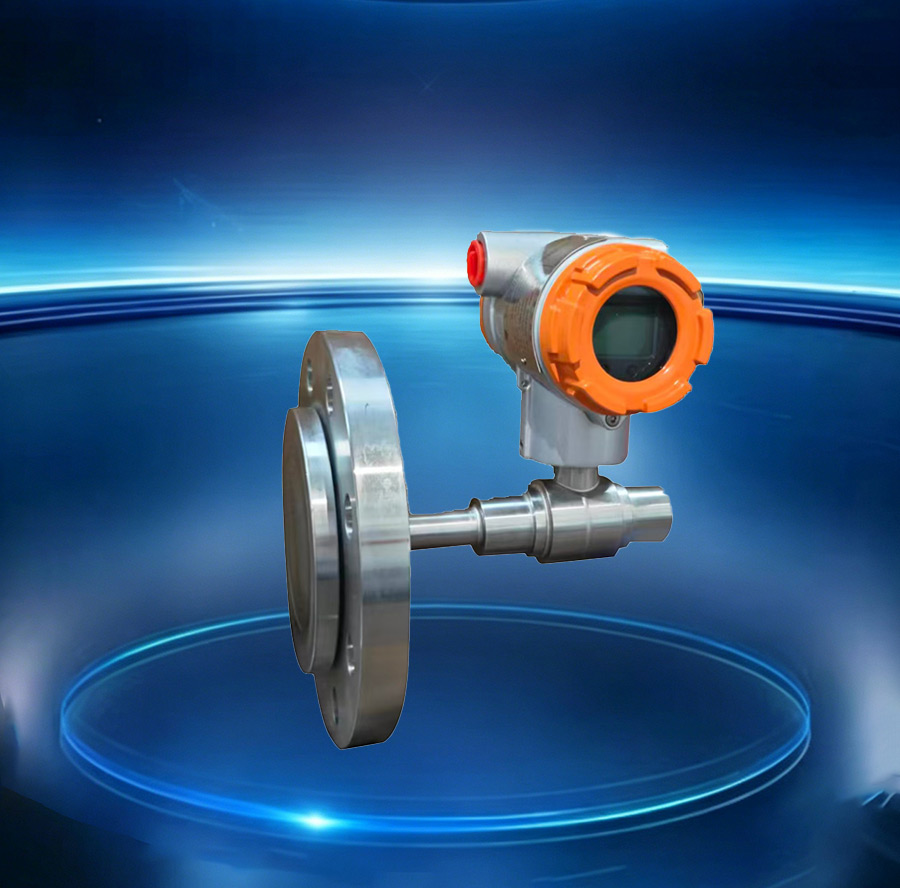

HD3105L Single Flange Pressure Transmitter for Level Measurement

Key Features

• Range: 10kPa to 7MPa

• Accuracy: ±0.025%, ±0.1%, ±0.2%, ±0.3%

• Output: 4-20mA with HART protocol

• Flange size: DN40, DN50, DN80, DN100 (1.5 to 4 inch)

• Diaphragm type: Flush or extended

• Capillary length: 1 to 12 meters

• Wetted materials: SUS316L, Hastelloy, Tantalum

• Measuring body material: 316L

• Stability: 15 years ±0.2% URL

• Explosion-proof: Ex db IIC T4~T6 Gb, Ex ia IIC T6 Ga

• Protection rating: IP67

Applications

• Open tank level measurement

• Wastewater treatment

• Chemical storage tanks

• Pulp and paper industry

• Food and beverage processing
