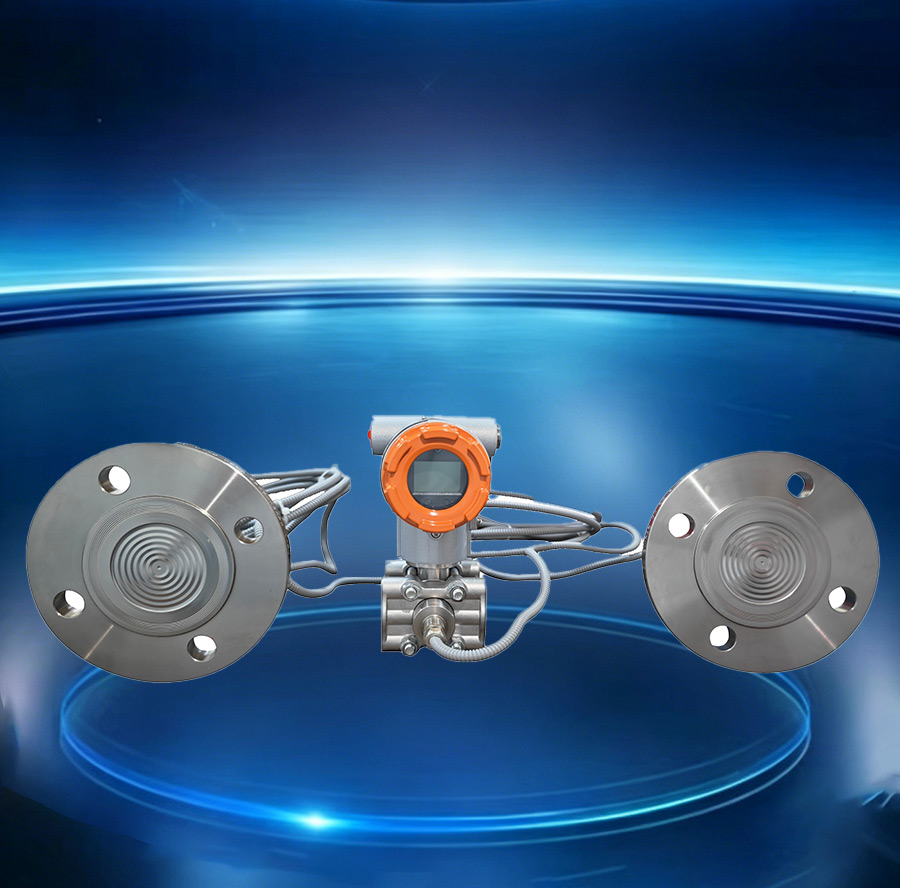

HD3105LS Dual Flange Differential Pressure Transmitter for Closed Tank Level

Key Features

• Range: 10kPa, 100kPa, 500kPa

• Accuracy: ±0.075%, ±0.1%, ±0.2%

• Output: 4-20mA with HART protocol

• Flange size: DN40, DN50, DN80, DN100

• Diaphragm type: Dual flush, dual extended, or one each

• Capillary length: 1 to 12 meters

• Turndown ratio: 100:1

• Wetted materials: SUS316L, Hastelloy C-276, Tantalum, Gold-plated diaphragm

• Stability: 15 years ±0.2% URL

• Explosion-proof: Ex db IIC T4~T6 Gb, Ex ia IIC T6 Ga

• Protection rating: IP67

Applications

• Closed tank level measurement

• Liquid interface measurement

• High temperature liquid level

• Viscous or corrosive fluid level

• Chemical reactor level control
