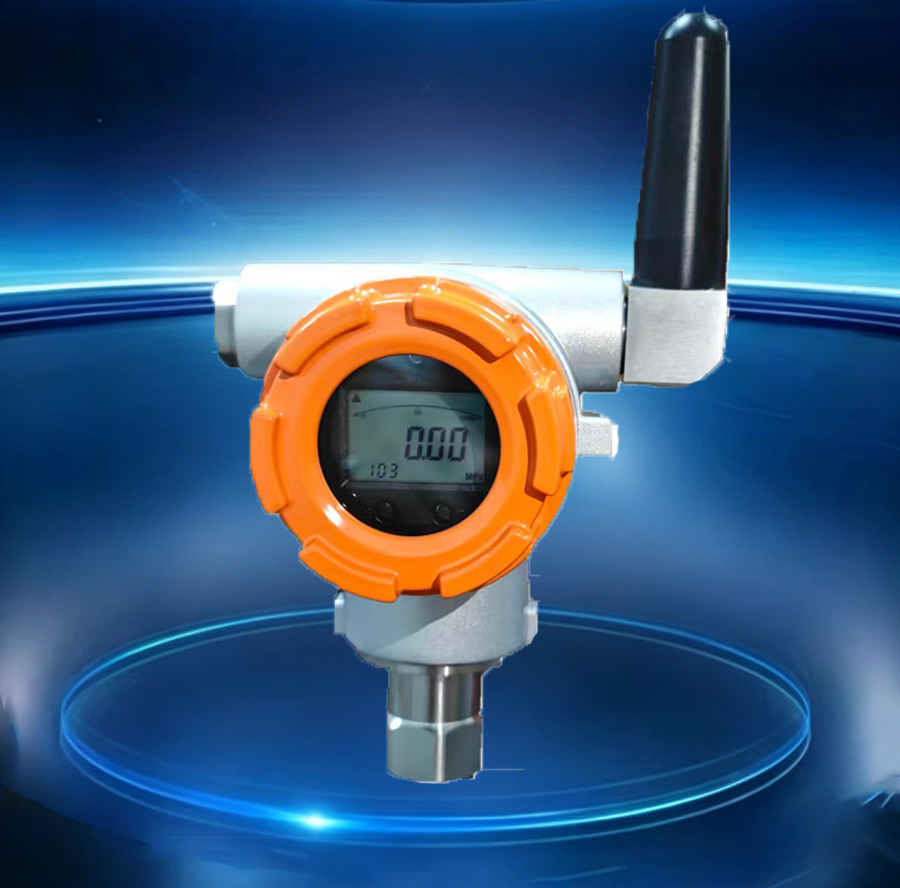

HD3105W Wireless Pressure Transmitter – Battery Powered for Remote Monitoring

Key Features

Pressure range: 10kPa to 150MPa
Accuracy: ±0.1%, ±0.2%, ±0.5%
Power supply: 3.6VDC internal battery (3+ years life)
Wireless options: Zigbee (100-800m), LoRa (1-5km), NB-IoT (cellular coverage area)
Display: 5-digit LCD (-30°C to 80°C)
Wetted materials: SUS316L, Hastelloy, Tantalum
Process connection: M20×1.5 or 1/2 NPT
Enclosure: Low copper cast aluminum alloy with polyurethane coating
Explosion-proof: Ex db IIC T4~T6 Gb, Ex ia IIC T6 Ga
Protection rating: IP67
