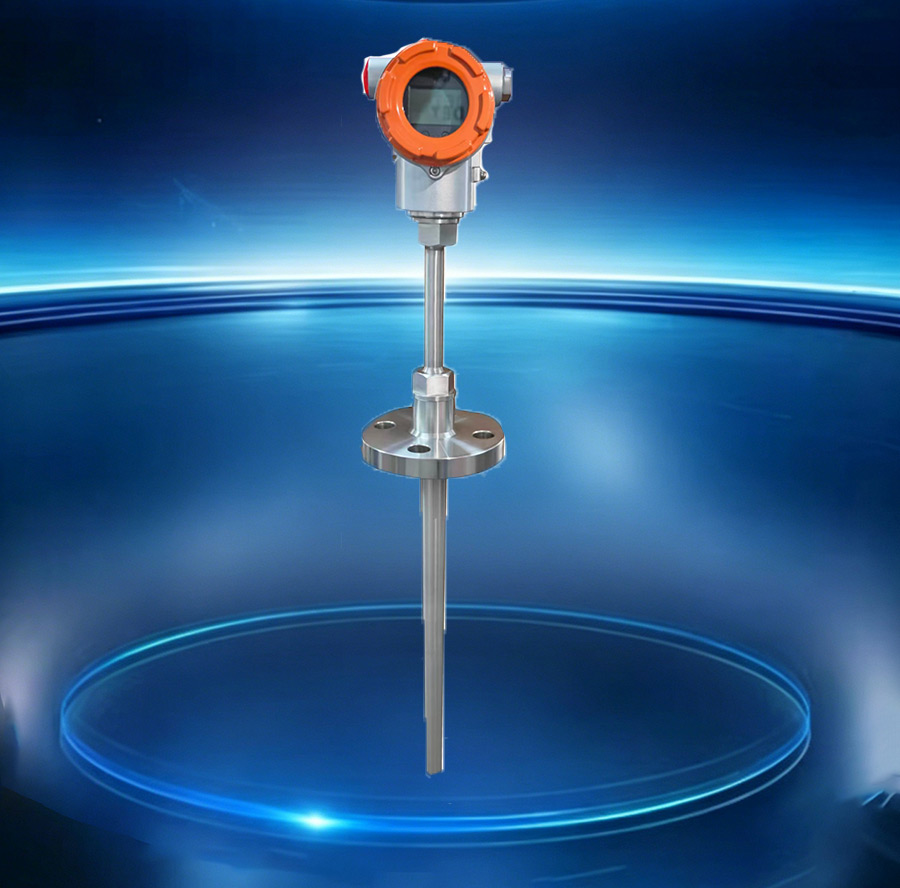

HD248 Temperature Transmitter – RTD & Thermocouple Input for Industrial Monitoring

The HD248 temperature transmitter adopts micro-machined silicon sensor technology and micro-power design. It offers internal span and zero adjustment buttons for on-site recalibration. The transmitter outputs temperature signal via RS485 MODBUS (or 4-20mA / HART) to control room, significantly reducing field installation wiring costs.

Key Features

• Input types: RTD Pt100, Thermocouple K/J/E/T/N/S/R/B

• Measuring range: -200°C to 1800°C (depends on sensor type)

• Accuracy: ±0.1%, ±0.2%, ±0.5%

• Output: 4-20mA, RS485 MODBUS RTU, HART protocol

• Power supply: 9-36 VDC

• Stability: Output change ≤0.1% over 12 months

• Temperature effect: <0.02% FS/℃

• Assembly type: Assembled or armored

• Protection tube diameter: Φ6, Φ8, Φ10.5, Φ13, Φ16, Φ20

• Protection tube material: 1Cr18Ni9Ti (stainless steel)

• Ambient temperature: -20°C to 70°C (commercial), -40°C to 85°C (industrial)

• Explosion-proof: Ex db IIC T4~T6 Gb

• Ingress protection: IP67

Installation Types

Applications

• Liquid, gas and steam temperature measurement

• Equipment integration and OEM

• Factory automation systems

• Laboratory temperature control

• Oil, chemical, power, metallurgical industries
